3D scanning reverse design solution for purple clay teapot

In the rapidly changing product market, the ability to quickly produce products that meet market requirements has become the key to the success of an enterprise. The unit is often entrusted to deliver a sample or model, such as wooden shoe molds, toys, electrical shell structures, etc., without the original design drawings, please copy it out by the production unit. The engineering staff can't get the accurate size, making the mold more complicated.

The needs of customers

Quickly obtain 3D data of different shapes of zisha teaports

Problems faced by customers

1. Different shapes, sizes and patterns of purple sand teapots are also different. Traditional measurement tools cannot obtain complete 3D data

2. Traditional ceramic production process is creative sketching --CAD drawing --3D modeling, long design and manufacturing cycle

3D scanning reverse design solution for purple clay teapot

3D Scanner: Photographic
3D Scanner Model: PTS-A

The precise and easy 3D scanner (model: PTS-A) is used for non-contact measurement. When the surface data of the physical model is collected, the collection speed is fast and the "point cloud" data can be formed. It is easy to use, with high collection accuracy, few dead corners and no too harsh requirements on external illumination. The 3d scanner can quickly get the 3d data of the sample, and directly modify the design on the 3D digital model according to the customer's requirements, so as to ensure the all-round details of the toy can be reflected, simplify the traditional design process, save time and improve the design efficiency. At the same time, the software can be used to carry out the modification design on the 3D digital model of any product, so as to develop serialized products efficiently.

The general process of reverse design: product sample → data acquisition → data processing CAD/CAE/CAM system → model reconstruction → manufacturing system → new product.

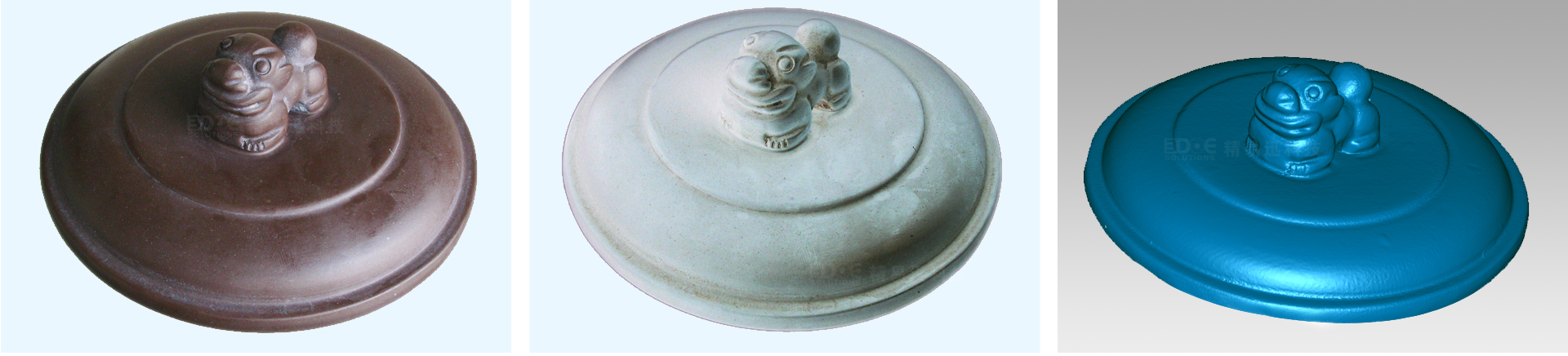

Summary : The traditional ceramic production process is compatible with modern 3D scanning reverse engineering technology. Taking the real object of the purple sand pot as a model, the real object point cloud combination is obtained through the physical object scanning, and the gemagic software is used to process the point cloud number and generate the STL format directly for 3D printing. Import reverse modeling software, carry out modeling innovation design, save STP format and import UG for numerical control programming processing, and get product mold. Improve the design and manufacturing cycle of Zisha products and greatly improve production efficiency.
