Working principle and operation steps of foot 3D scanner

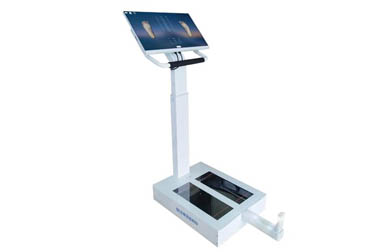

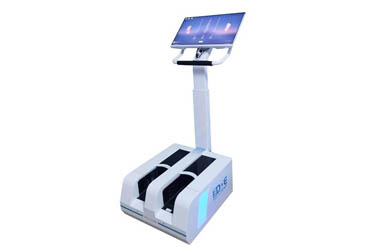

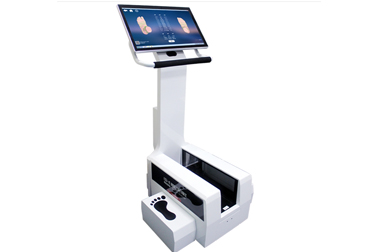

A foot 3D scanner is a device used to accurately measure the shape of the foot. It is widely used in medicine, sports science, footwear customization and other fields. It obtains the three-dimensional data of the foot through non-contact scanning technology and generates a high-precision digital foot model. Its working principle relies on advanced optical measurement technology, such as laser scanning, structured light scanning or depth camera technology, to ensure the accuracy and stability of the data.

1. Working principle of foot 3D scanner

The core principle of foot 3D scanner is to capture the surface data of the foot through optical scanning technology and reconstruct the three-dimensional model of the foot using algorithms. Common scanning technologies include the following:

Laser scanning: Use a laser beam to project onto the surface of the foot, and use a camera to capture the position of the reflected light spot of the laser, calculate the height change of the surface of the foot, and finally form point cloud data. This technology has high precision and is suitable for medical or customized footwear fields that require precise measurement.

Structured light scanning: Use a projector to project a specific grating pattern onto the surface of the foot, and use a camera to capture the deformation of the grating, and then calculate the three-dimensional shape of the foot through an algorithm. Compared with laser scanning, structured light scanning has a faster measurement speed and is suitable for application scenarios such as large-scale shoe customization and sports gait analysis.

Depth camera technology: Use infrared or ToF (time of flight) technology to measure the depth information of the foot. This technology determines the spatial coordinates of the foot surface by calculating the time difference between the light emitted from the device and the light returned, and then generates a three-dimensional model. This technology is more common in portable 3D scanning devices.

The scanned foot data is usually stored in the form of point clouds or mesh models, and can be analyzed, measured, adjusted and applied through computer software.

2. Operation steps of foot 3D scanner

In order to ensure the accuracy of measurement, the use of foot 3D scanners must follow standardized operation steps, which usually include the following key links:

Equipment preparation

Ensure that the scanner is in a stable state and connected to a computer or a dedicated data processing terminal.

Select the appropriate scanning mode according to the measurement requirements, such as static scanning or dynamic gait scanning.

Calibrate the equipment to ensure that the scanning accuracy meets the standard.

Preparation of the test subject

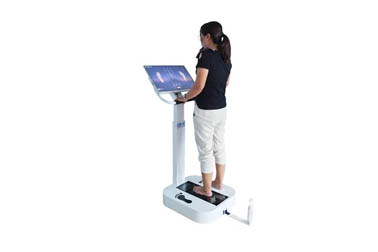

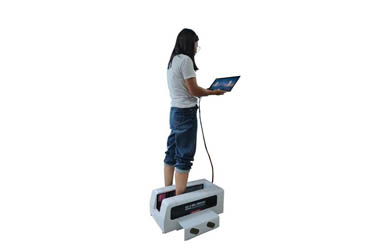

The test subject needs to stand barefoot on the scanning platform to ensure that the feet are completely exposed and unobstructed.

In certain application scenarios, it may be necessary to adjust the standing posture, such as standing naturally with both feet or bearing weight on one foot, to obtain foot shape data under different force conditions.

Data acquisition

Start the scanner, project laser or structured light to the foot, and the camera system records the reflected light or deformation grating.

The scanner automatically calculates the three-dimensional coordinate data of the foot and forms a complete point cloud model.

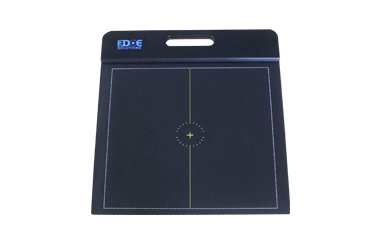

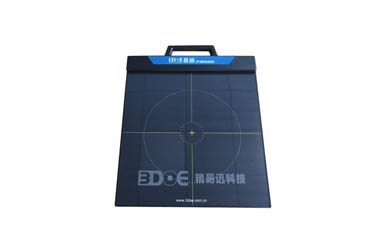

Some high-end equipment can simultaneously record the plantar pressure distribution, providing more complete data support for footwear customization and medical diagnosis.

Data processing

The scanned data is processed by dedicated software, including point cloud optimization, denoising, meshing and surface reconstruction.

Calculate key foot parameters such as foot length, foot width, arch height, toe angle, etc., and match and analyze with the database.

Generate a three-dimensional model and visualize the foot shape data for subsequent applications.

Data application

In the medical field, scanning data can be used to diagnose foot diseases such as flat feet, high arches, hallux valgus, etc., and assist in customizing orthopedic insoles or rehabilitation orthotics.

In terms of footwear customization, three-dimensional foot shape data can be used for personalized shoe last design, combined with 3D printing or CNC processing technology to achieve highly matched footwear products.

In the field of sports science, this data can be combined with gait analysis systems to optimize sports shoe design and improve athletes' gait efficiency.

3. Future development trends

With the development of artificial intelligence, cloud computing and big data analysis, the application of foot shape 3D scanners will be more extensive, and the following trends will be presented:

AI intelligent analysis: Combined with artificial intelligence algorithms to automatically analyze foot shape data and provide personalized health advice or footwear recommendations.

Cloud data storage: Users can store foot shape data in the cloud to achieve remote customization and long-term health management.

Portable scanning equipment: Miniaturized and low-cost scanners will promote popularization, so that ordinary consumers can also obtain professional-level foot measurement services.

The foot 3D scanner provides scientific support for medical diagnosis, sports science, shoe manufacturing and other fields by accurately measuring the foot shape. Its high-precision, non-contact and fast measurement characteristics make it an important technical tool for modern foot health management and personalized shoe manufacturing. In the future, with the continuous advancement of technology, its application will become more intelligent and popular, bringing accurate and efficient foot health and comfort experience to more people.
