贴合飞机检修用夹具制作方案-三维扫描服务

为保证飞行安全，设备正常运作，维修人员需要经常对飞机进行检修，在对进风口内扇叶做检查时需要人员站到进风口外边缘，怕检修过程中损伤机身，需要做个比较贴合的夹具保护，又能方便人站到上面。

▌客户需求：扫描进风口边缘部分3D数据，通过三维设计软件，重构实体模型，便于制作维修夹具。

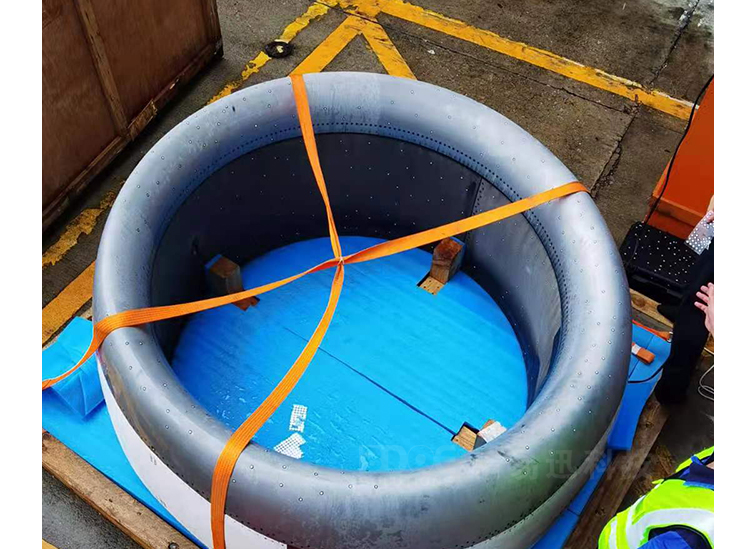

▌三维扫描样品：发动机进风口边缘


▌使用设备：手持式三维扫描仪 eSharp-P13

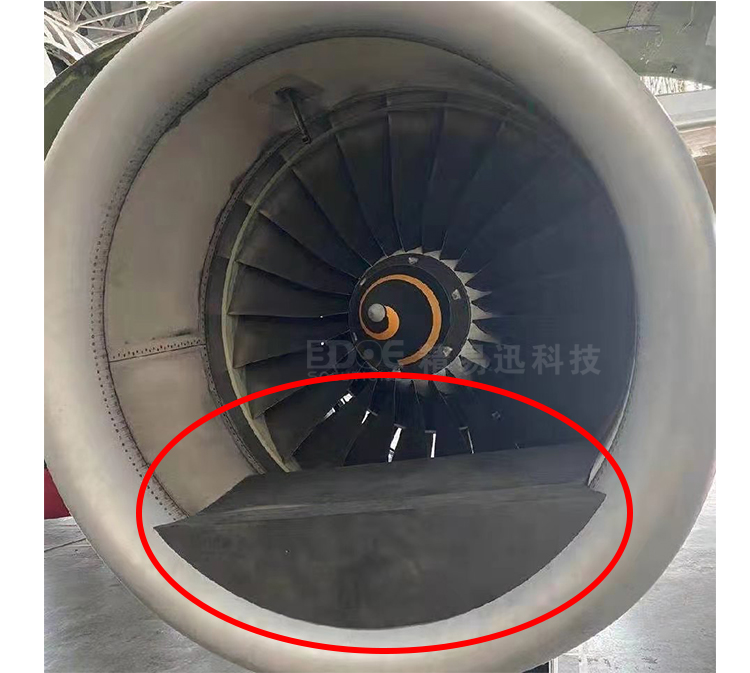

▌扫描目的：得到配件的精确尺寸和3D模型，便于制作如下图红圈内类似更加贴合的维修夹具。

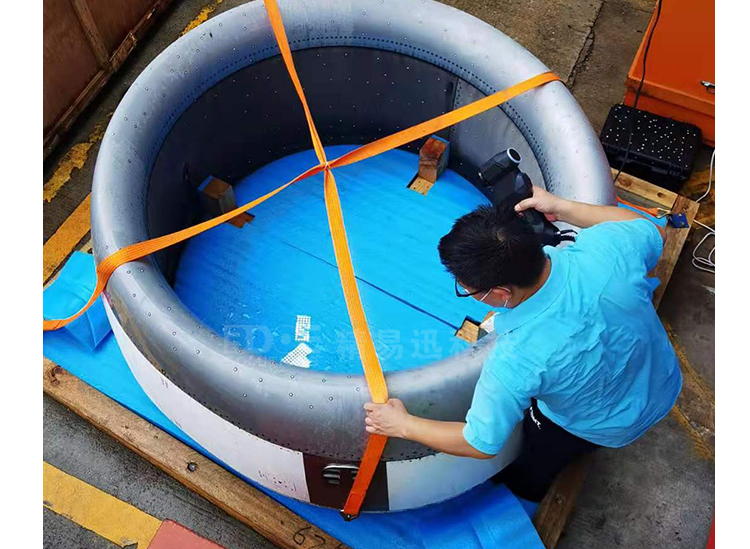

扫描中·······

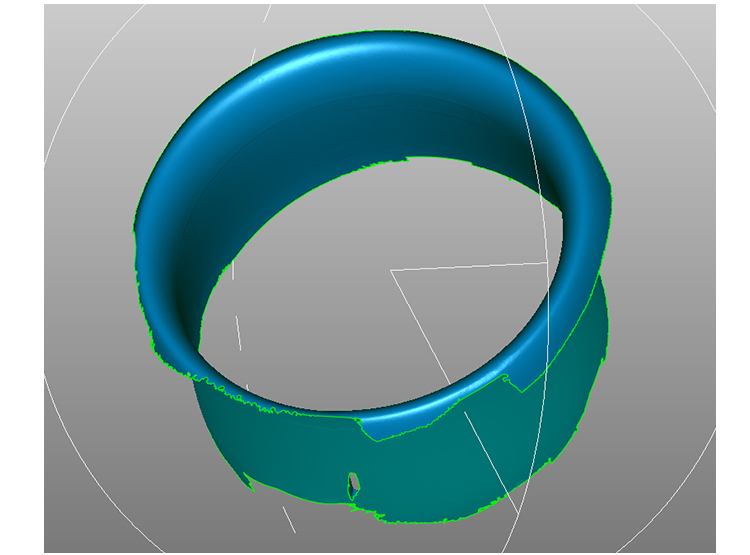

扫描结果

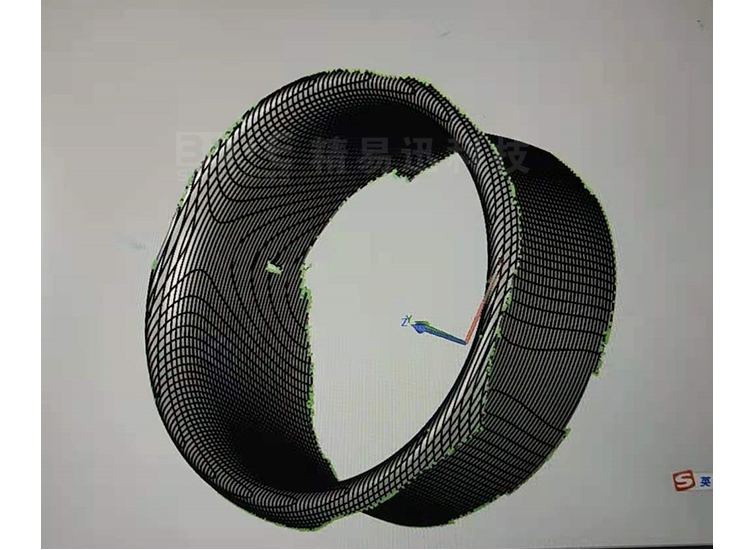

通过逆向工程3D建模制作维修用夹具。
