Auto parts three-dimensional size inspection solution

The quality of auto parts is one of the important factors that directly affect the performance of the car. In the face of increasingly fierce market competition, the production of auto parts uses 3D scanners to enhance technical advantages, thereby improving product quality and shortening the production cycle.

Issues that need resolving

1. The shape of auto parts is complicated, the shape of the groove inside the bottom surface is different, and the contour of the curved surface is more. The use of other testing equipment may result in incomplete three-dimensional data obtained, which cannot meet customer needs.

2. Using traditional measurement methods (such as inspection tools, fixtures, three coordinates, etc.) is very tedious and time-consuming. And it is not easy to accurately and quickly measure and inspect the structure of auto parts.

Full-size 3D inspection solutions for auto parts

1. Use industrial 3D scanners to quickly obtain 3D data of auto parts

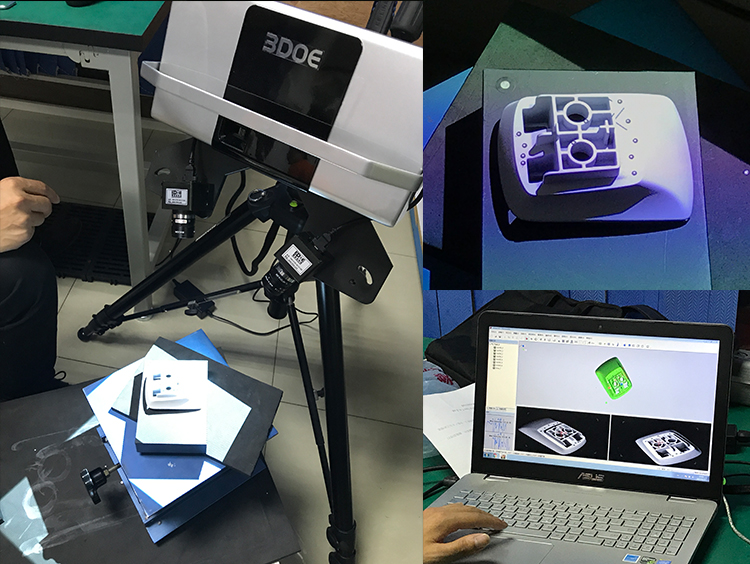

3DOE’s technical engineers use a 3D scanner (PTS-A series) to perform 3D scanning. The scanning time is about 10-15 minutes. The scan results of auto parts are 3D data in asc, stl and other formats.

w-_0008_图层 1.jpg

2. Import original CAD data of auto parts into 3D mathematical modeling detection software (3 digital modeling detection software allows the import of original data of all major CAD software, which is acceptable in STP and IGS format)

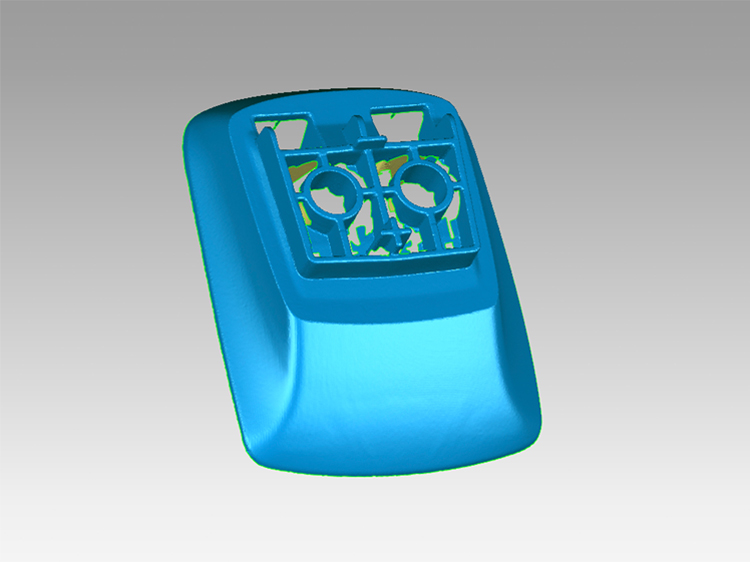

3. Import the scanned 3D point cloud data of auto parts in ASC format into 3D mathematical modeling detection software for 3D mathematical modeling detection and comparison

w-_0005_图层 5.jpg

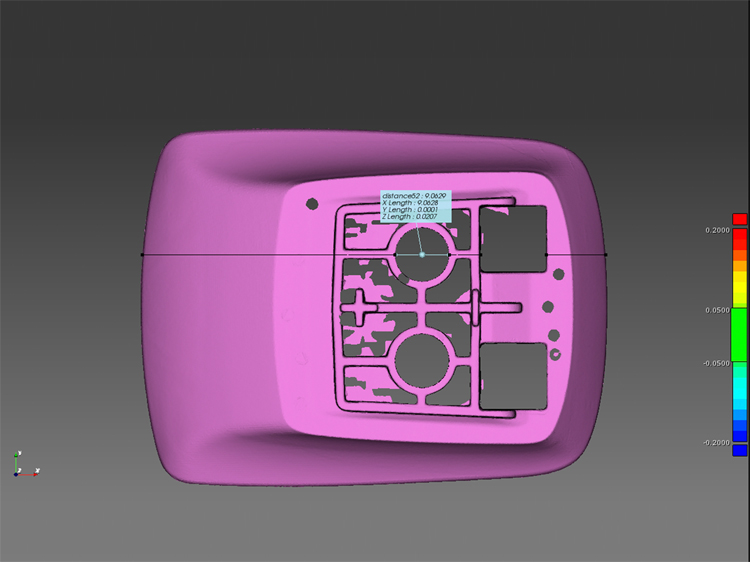

4. Generate 3D digital and analog inspection reports for auto parts

w-_0006_图层 4.jpg

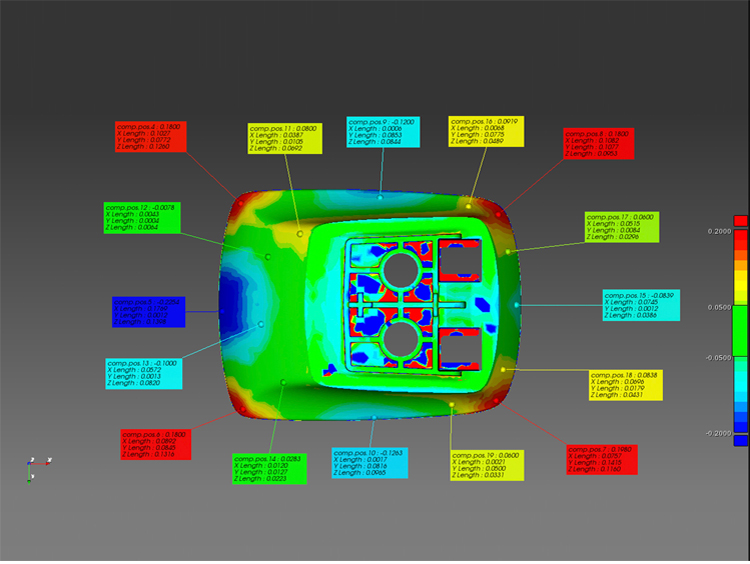

You can generate screenshots of test reports for all the points you need

Major test reports can be generated

Test projects that can be saved, can be backtracked and cumulative testing

You can do an overall bias comparison
