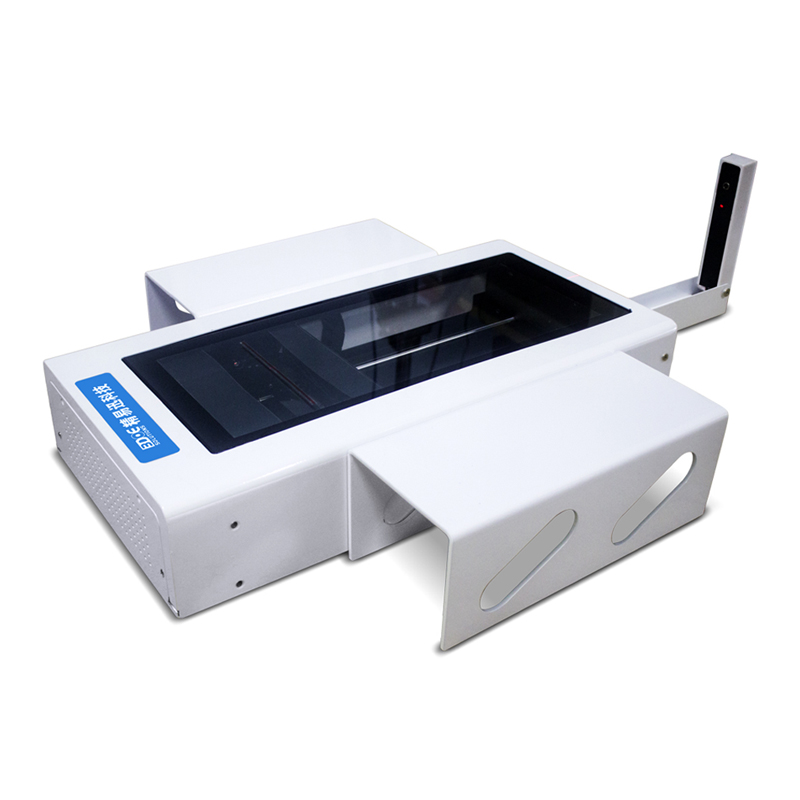

eSole-300 Plantar Scanner

Classification:

Product model:eSole-300

3DOE eSole-300 Foot 3D Scanner is a professional measuring device for 3D scanning of human feet. It adopts non-contact laser scanning method. It can collect 3D data of human feet within 10 seconds and generate more than 20 parameters. , Supports full-weight, half-weight or non-weight-bearing plantar scanning, and can effectively carry out various tasks such as orthopedic insole design, personalized insoles, scientific selection of shoes, podiatric diagnosis and podiatry correction; widely used in medical treatment and sports , Shoe store retail and other fields.

+86-0755-86131192

Product introductionClassic casestechnical parameterapplication areacontact us

The eSole-300 plantar 3D scanner adopts 4 visions for synchronous work. It has high accuracy, no dead angles in scanning, simple operation, practical and easy to learn, and both feet can be measured within 10 seconds. The plantar 3D scanner (also known as the sole 3D scanner) has been widely used in the field of personalized custom insole customization industry, foot shape correction industry, and other fields. In the personalized high-end customization and orthopedic insole industry, it has established cooperative relationships with many shoe companies, medical institutions, and universities.

Product features:

★ Ergonomic design, using non-contact safety laser scanning, no harm to human body

★ Scanning object: sole, capsule

★ Experience software interface: use software to automatically guide the operation

★ Four-view plantar scan, which can measure the sole and part of the side information, which better guarantees the shape of the arch and the complete size of the sole

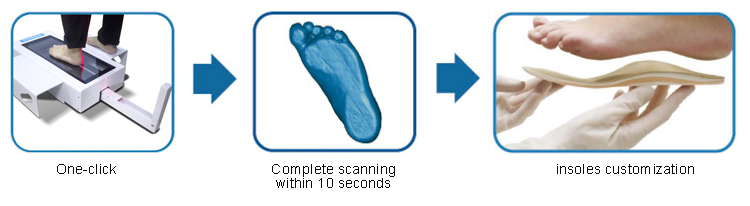

★ Measurement speed: complete a complete scan of the sole of the foot in 5~10s

★ Measuring accuracy: ±0.5mm

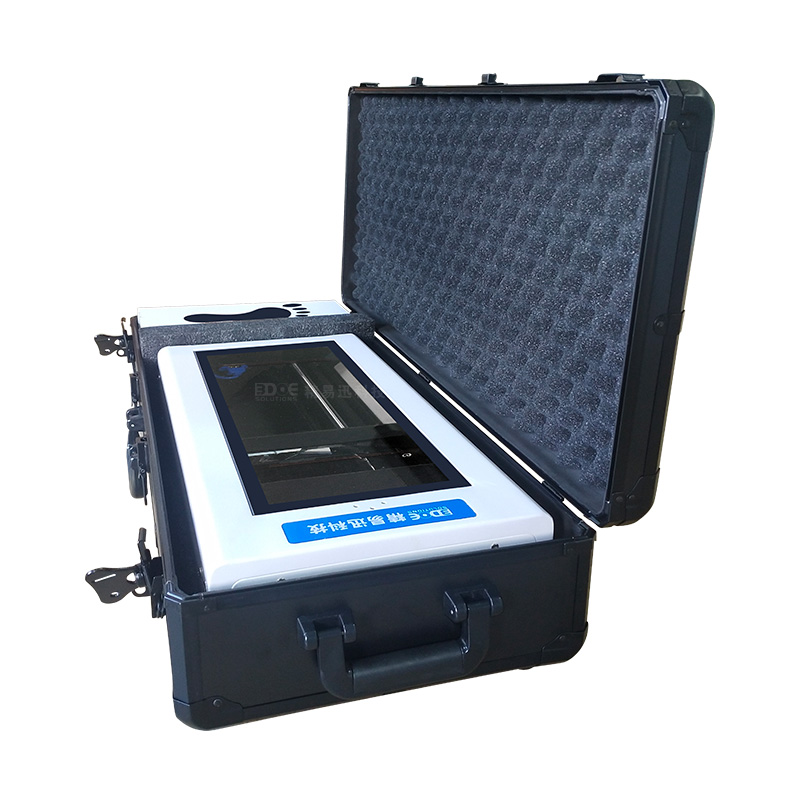

★ Easy to carry

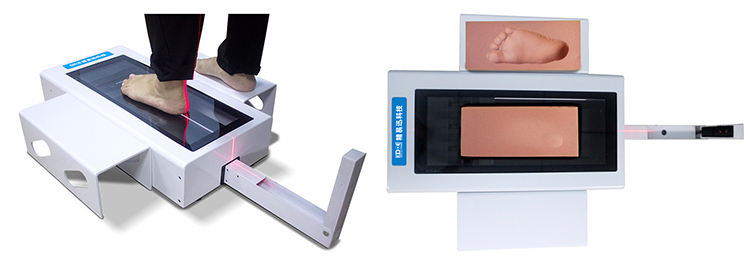

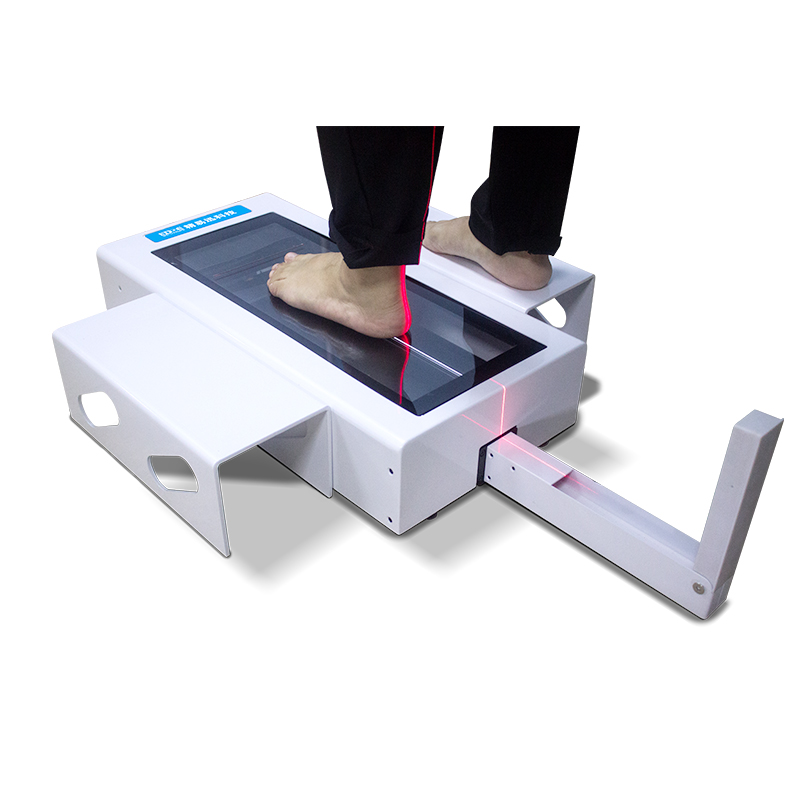

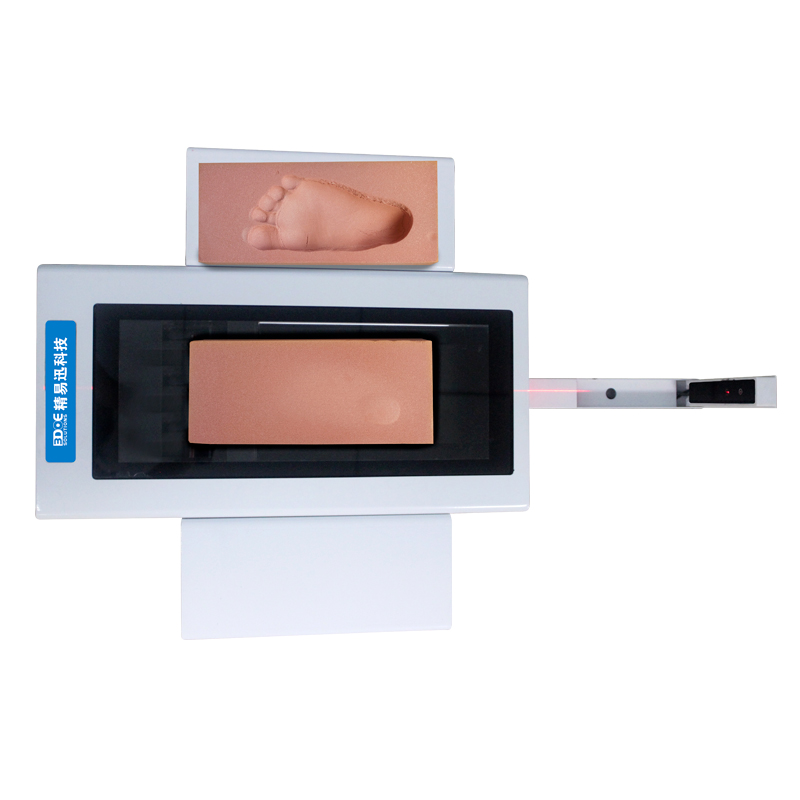

Plantar scanning Foot print box scanning

▣ Classic cases

▣ Technical Parameters

Model	eSole-300
Scanning light source	Laser Class2M, no harm to human body and eyes
Scan range(x,y,z)	300×170×50mm
Scanning error	± 0.5 mm
Scanning time	5-10s（One foot）

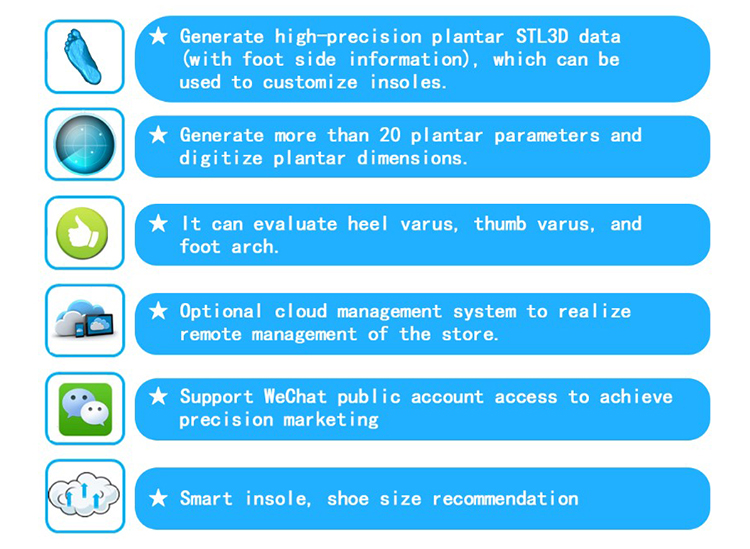

Output information	3D data (STL format) and more than 20 plantar parameters, with analysis of arch, heel, and thumb varus
Other functions	1.Support WeChat public account access 2.Support cloud remote management 3.Support multi-store management 4.Support smart selection of shoes and insoles
