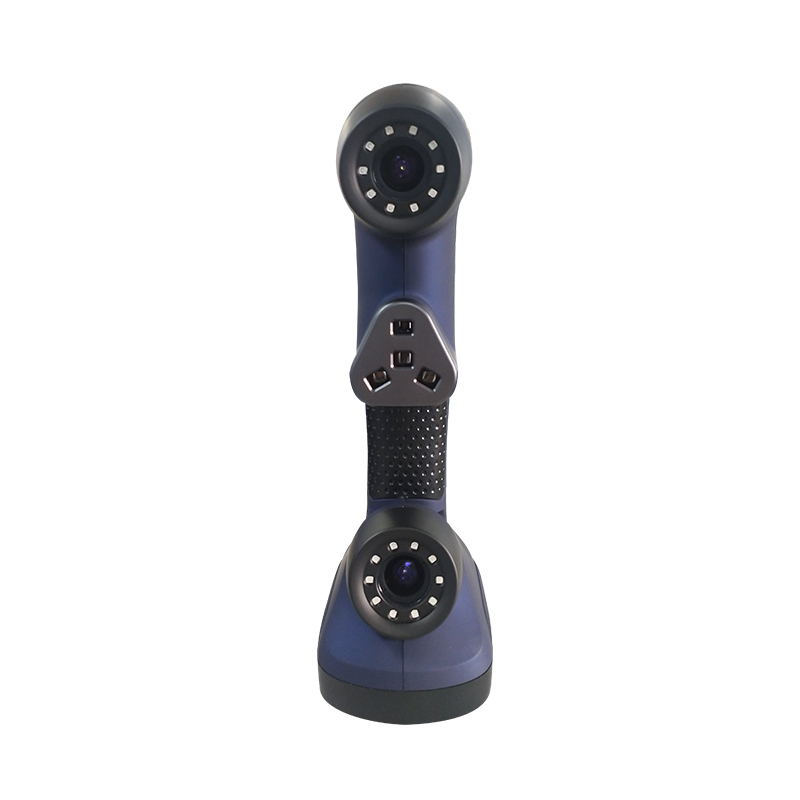

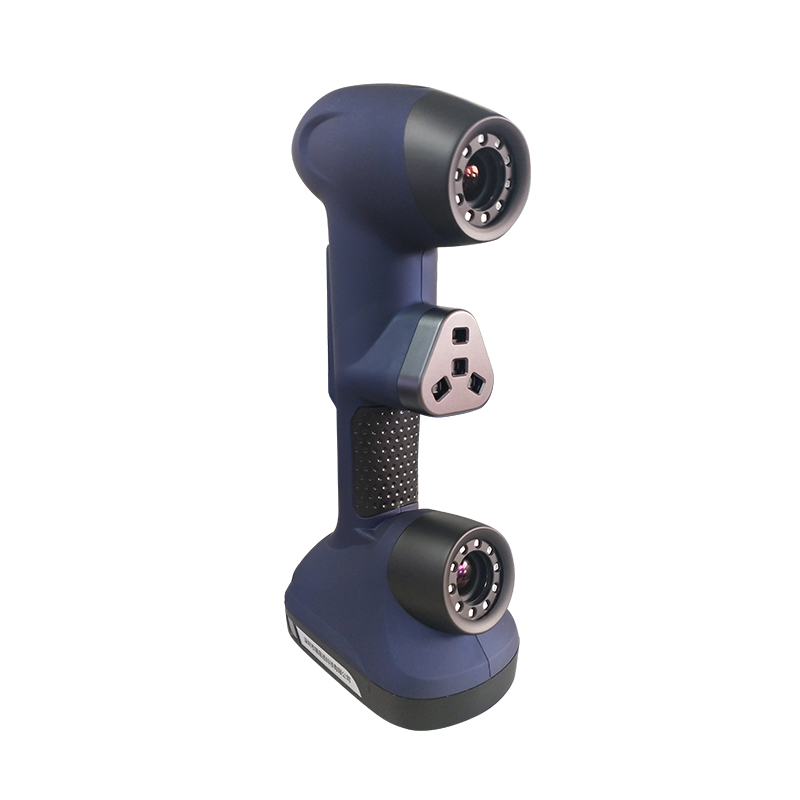

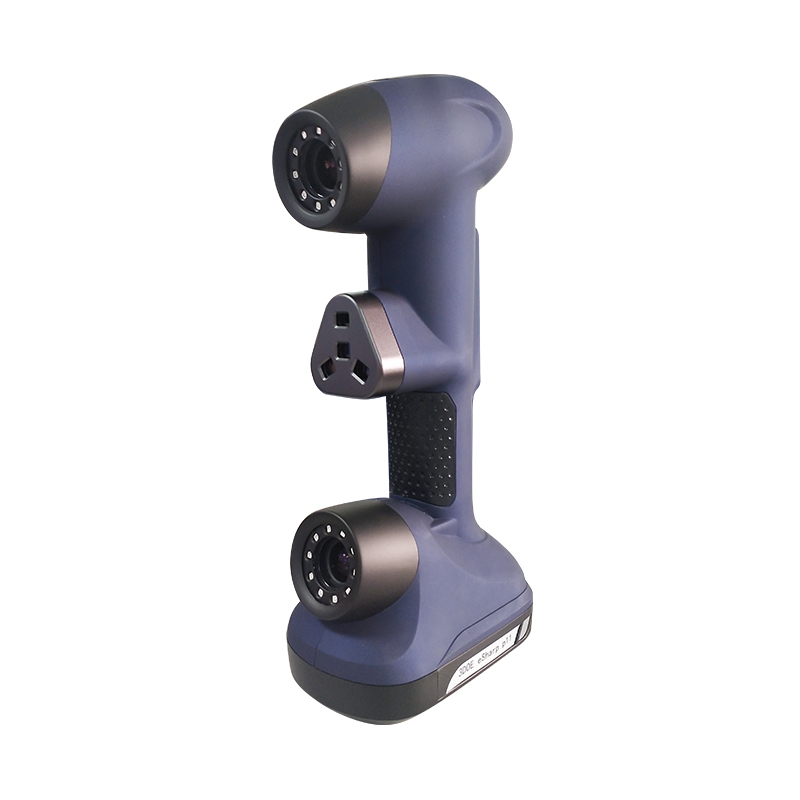

eSharp P11 Handheld 3D Scanner (Blue Light)

Classification:3D Handheld Scanner

Product model:eSharp P11

The eSharp-P 11 (blue light) handheld laser 3D scanner can realize fine scanning of small signs, and the precision of the fine mode can reach 0.01mm. Visual operation (computer displays real-time data). High accuracy, faster measurement rate, easy to achieve data acquisition of bright surfaces, widely used in quality inspection, reverse design, digital display, automobile manufacturing, mold manufacturing, 3D printing, etc.

+86-0755-86131192

Product introductionClassic casestechnical parameterapplication areacontact us

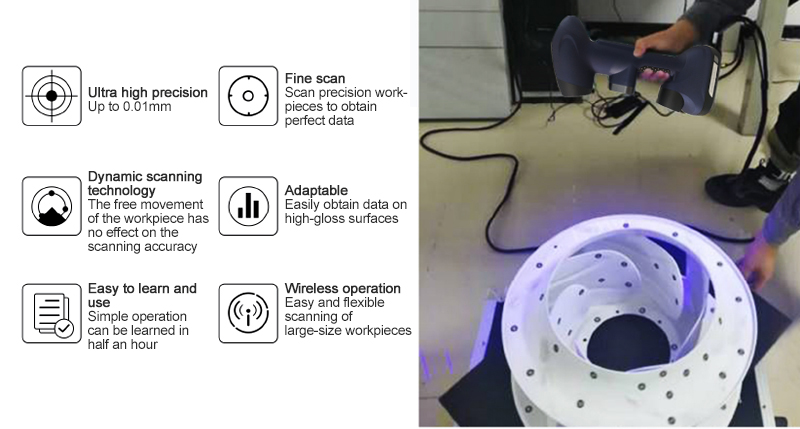

Features

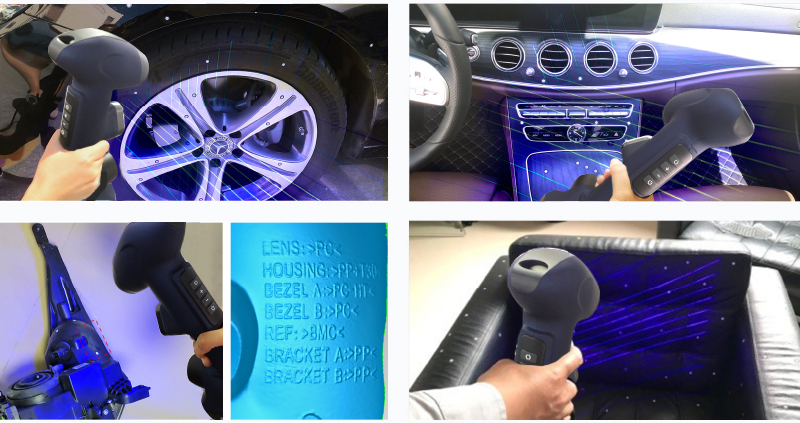

▣ Classic cases

Car wheel scan Car interior scanning

Fine scan Sofa scan

▣ Technical Parameters

Product parameter	eSharp-P11
Product parameter	Standard mode	Fine mode
Measuring rate	650,000 measurements/sec	450,000 measurements/sec
Scan area	Maximum 600 X 550mm
Blue laser light source	14 blue laser lines (+ 1 extra beam for scanning deep holes, + extra 5 beams for scanning details)
Laser category	Class 11 (safe for eyes)
Resolution	Maximum 0. 02mm
Precision	Up to 0.02mm	Up to 0. 01mm
Volume accuracy	0.02+0.035m m/m	--
Volume accuracy (combined with photogrammetry)	0.02+0.015mm/m	--
Reference distance	300mm	150mm
Depth of field	450mm	150mm
