3D digital-analog inspection software is a professional 3D data inspection software. With the innovation of 3D scanning technology, engineers can use 3D digital-analog inspection software to measure 3D point cloud data obtained by scanning objects with 3D scanners to replace traditional measurement methods.

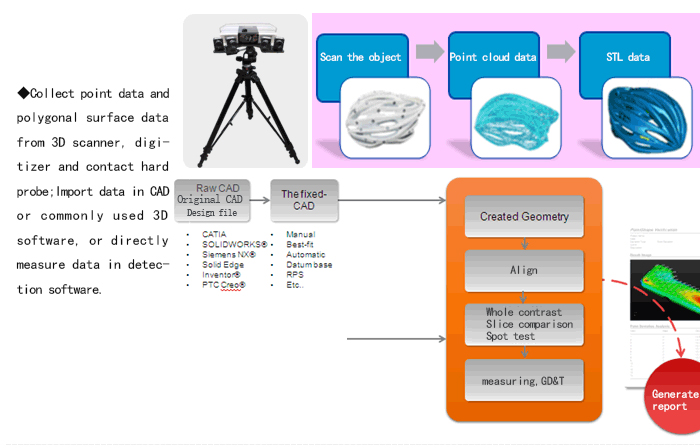

Collect 3D point cloud data and polygonal surface data of objects through Jingyixun 3D scanner, etc., and directly perform digital and analog inspection in 3D digital and analog inspection software; 3D digital and analog inspection software allows importing all major CAD program raw data, such as Siemens NX , CATIA V5, Pro / ENGINEER, and through a simple workflow, friendly user interface and accurate calculations, can effectively reduce personnel and reduce costs.

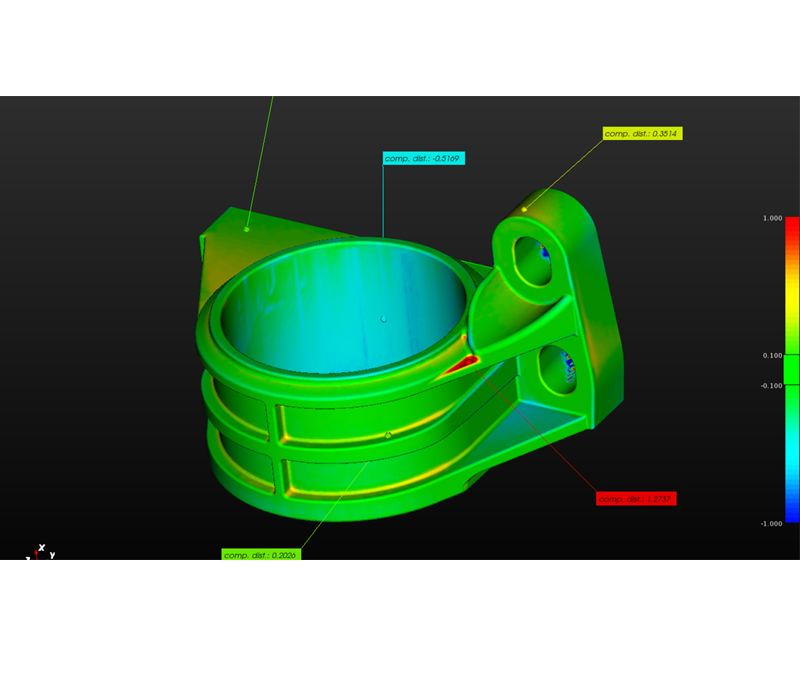

The 3D digital-analog inspection software has developed the functions of overall deviation, slice deviation, point deviation, measurement, GD&T information and report, which is more convenient and quick to use.

Main functions of 3D digital-analog inspection software:

1. Digital and analog alignment: initial, manual, best alignment, automatic, RPS, datum

2. Optimal alignment initialization, automation

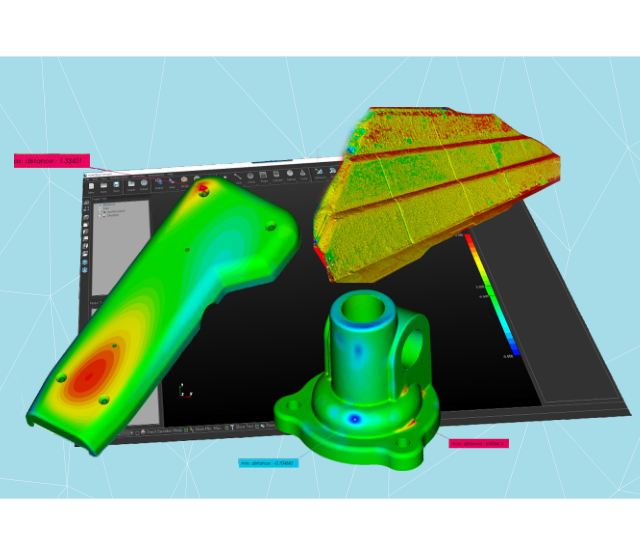

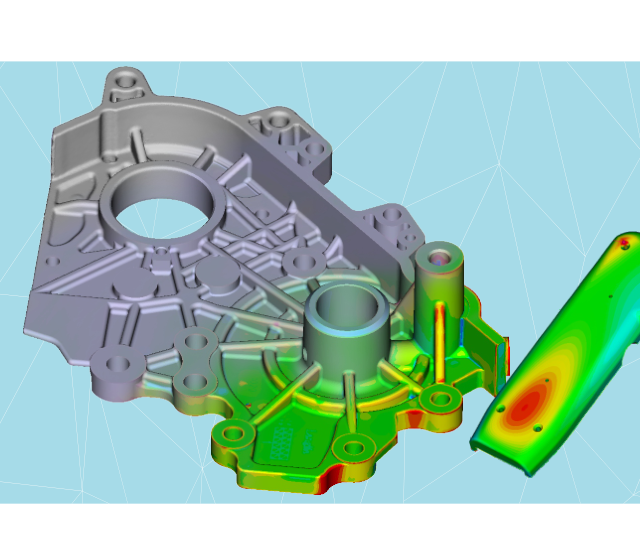

3. Digital-analog comparison: overall deviation, slice deviation, point deviation

4. CAD to mesh: mesh surface subdivision, mesh optimization, mesh fixation

5. Measurement: distance, angle, radius, calculation area, calculation volume

6. Additional geometric structures: point, line, circle, plane, cylinder, sphere, cone

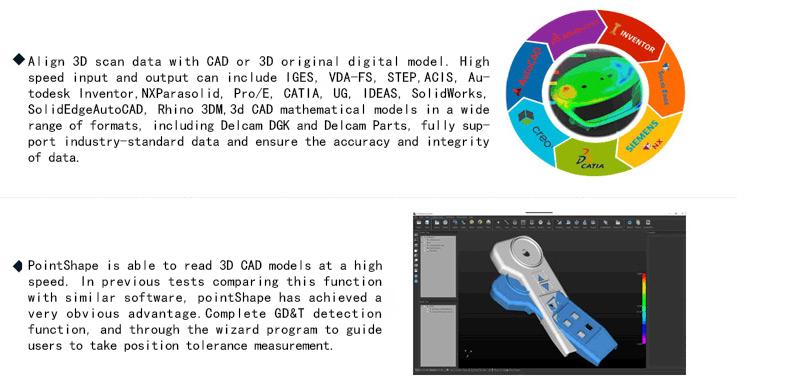

7. Local CAD format support: SiemensNX, Catia V5, Pro/E, Solid Works, Solid Edge, 3D Studio 5.3ds, Autodesk DXF, Parasolid, IGES, STEP, etc.

8. Report: PDF file
