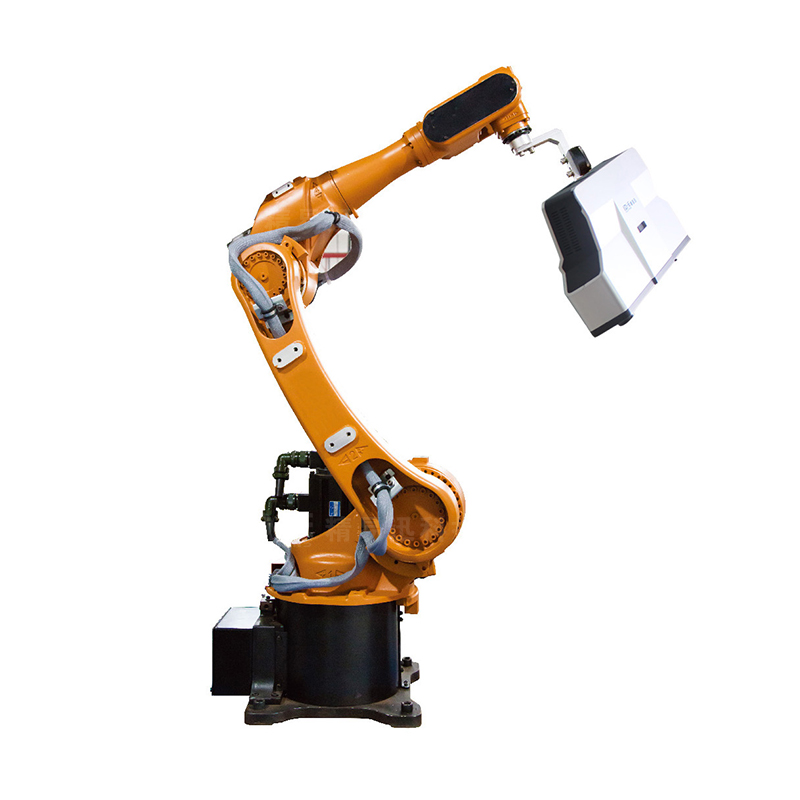

PM series 3D Surface Light Measuring Head

Classification:3D Machine Vision

Product model:PM series

+86-0755-86131192

Product introductionClassic casestechnical parameterapplication areacontact us

PM series surface light 3D measuring head adopts advanced blue light raster scanning technology, equipped with the company's independently developed control chip and high-precision industrial camera, which can meet various high-precision three-dimensional measurement needs. Provide a fast, effective and reliable effective solution for collecting three-dimensional contour data of objects. The camera resolution is available from 1.3-9 million pixels. It can be used for industrial visual inspection, such as inspecting 3D features of parts, including contour and shape, height, curvature, aperture, etc.


▣ Technical Parameters

Product number	PM series
scanning method	Non-contact blue/white light scanning
Single scan range (mm2)	100X75~800X600 adjustable
Measuring accuracy (mm)	0.005~0.05
Single scan points (pixels)	1.3 million-9 million
Single scan speed (S)	< 1.5
Average dot pitch (mm)	0.02 ~ 0. 6
Output Data	3D point cloud data, automatic fusion of multi-view data
I/O interface	3 programmable input interfaces, 3 programmable output interfaces

To understand the specific application of 3D measuring head, blue light raster scanning, high-precision three-dimensional measurement, please contact online (leave a message) or call 0755-86131192!

Provide system customized solutions!
