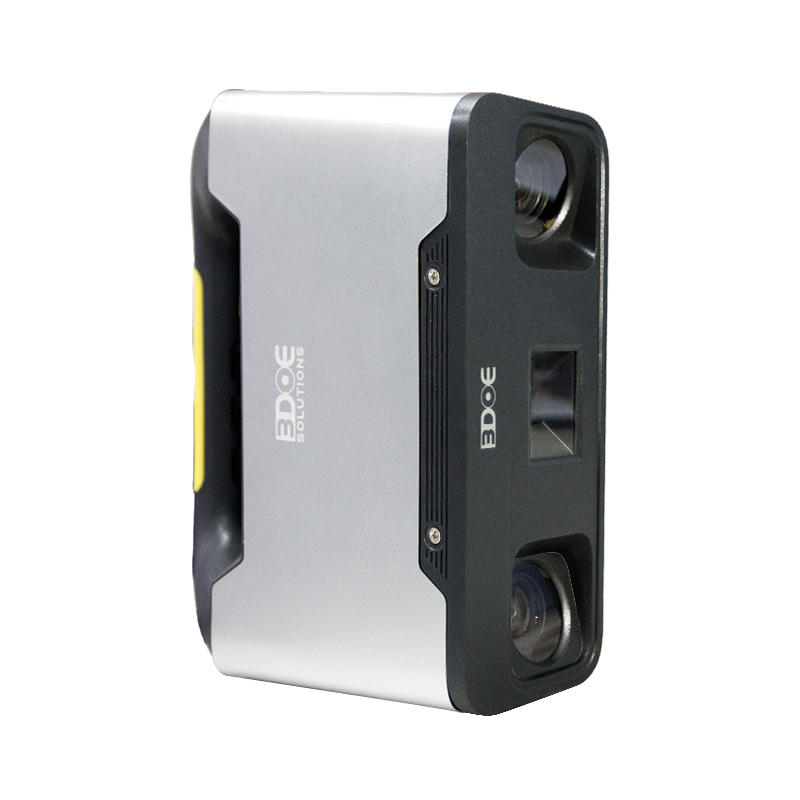

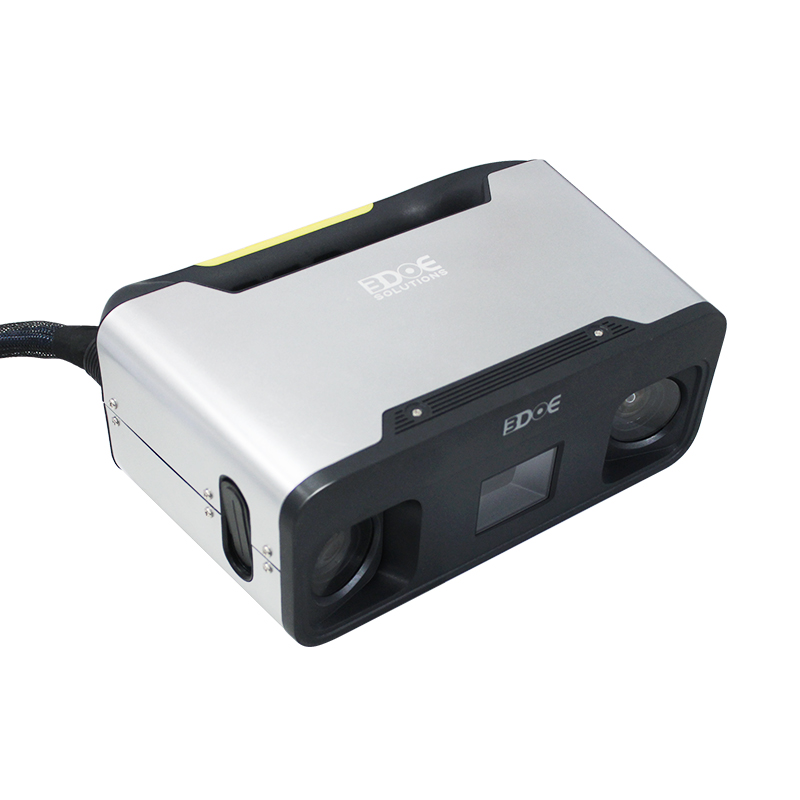

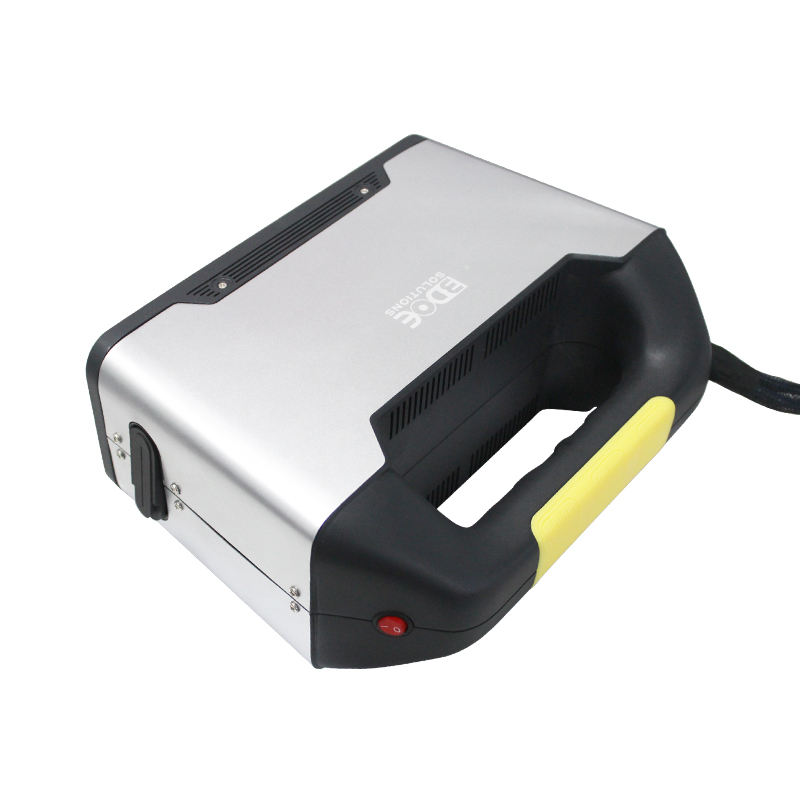

eSharp X7 Handheld Camera 3D Scanner

Classification:3D Handheld Scanner

Product model:eSharp X7

The handheld camera-type 3D scanner is mainly used to scan the spatial shape and structure of the object to obtain the spatial coordinates of the object surface, detect and analyze the shape (geometric structure) and appearance data (such as color, texture) of the object or environment in the real world And other properties). The handheld camera-type 3D scanner (eSharp-X7) supports handheld scanning and fixed bracket scanning, compatible with a variety of splicing methods, and has a variety of bands of light sources (multi-color light sources).

+86-0755-86131192

Product introductionClassic casestechnical parameterapplication areacontact us

eSharp-X7 handheld camera 3D scanner (3D scanner) is mainly used to scan the spatial shape and structure of objects to obtain the spatial coordinates of the object surface, detect and analyze the shape (geometric structure) of objects or environments in the real world And appearance data (such as color, texture, etc.). The handheld camera-type 3D scanner (eSharp-X7) supports handheld scanning and fixed bracket scanning, compatible with a variety of splicing methods, and has a variety of bands of light sources (multi-color light sources).

Features

1. Multiple splicing methods

Feature splicing/marking point splicing/frame splicing, feature splicing (scanning human faces) without marking points

2. The operation is simple and easy to learn

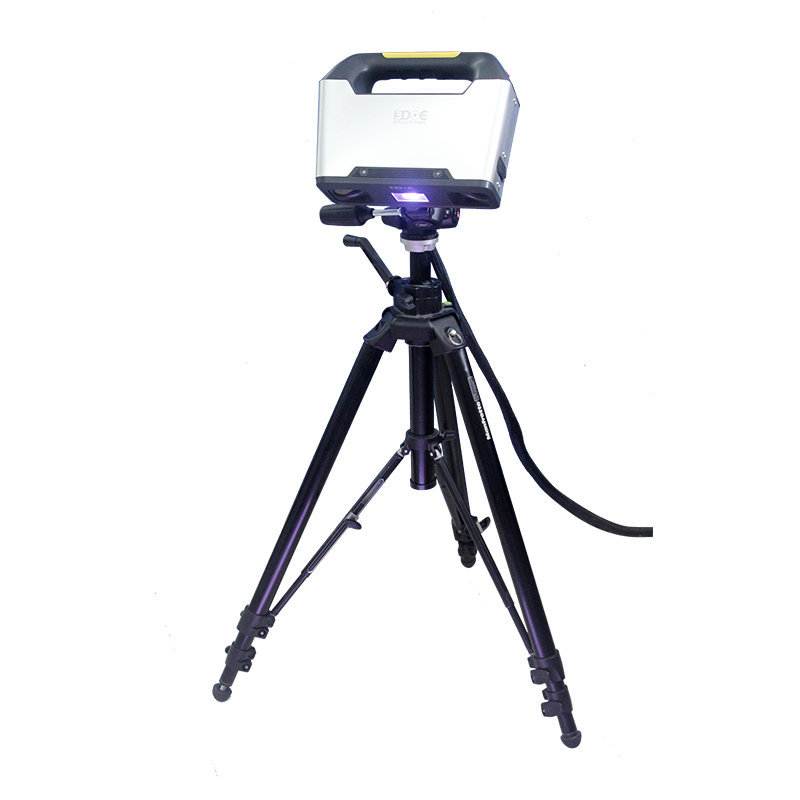

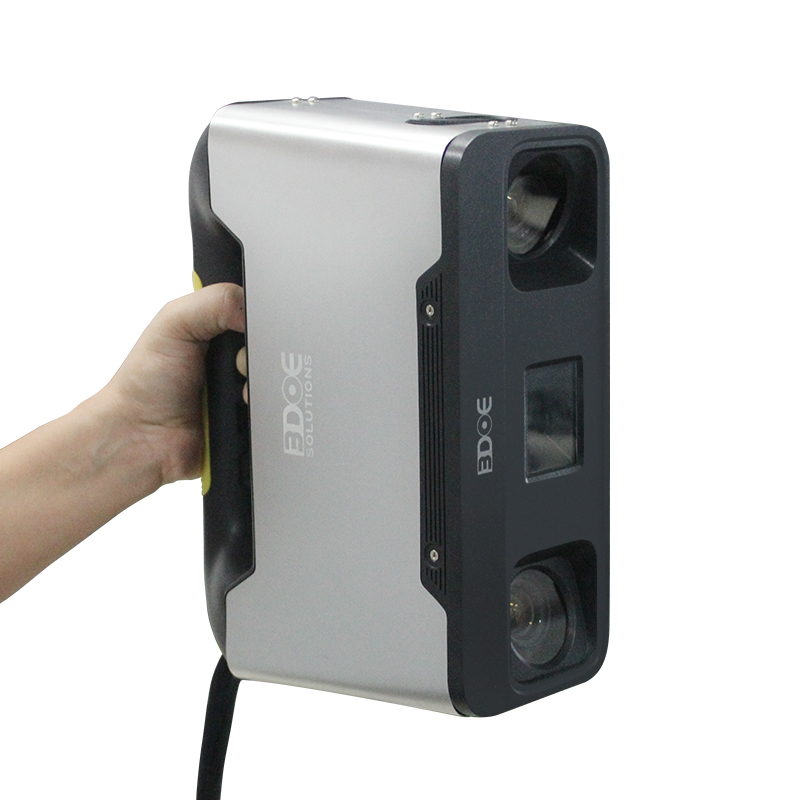

Handheld scanning, bracket scanning

Triggered scanning, 2 hours of training can be proficient in operation

3. Portable structure design

Handheld and convenient, the device hardware is small, and can be easily brought to the measurement site

Advantages of handheld 3D scanner eSharp-X7

1. High measurement accuracy

Powerful detail capture capability, measurement accuracy can reach 0.02mm

2. Fast measurement speed

Within 0.1 second of single-sided scanning time, millions of points can be collected

3. A variety of band light sources are available

LED white/blue/red/green/multicolor optional

4. Wide scanning range

It can scan objects as small as a few millimeters to several meters, as well as faces and other parts of the human body

5. Rich measurement output data interface

The measured point cloud data is ASC, STL, PLY, IGES, OBJ, DXF, etc.

Can directly exchange data with Surfacer, image ware, UG, CATIA, Geomagic, Pro/E, Master CAM and other software

6. Fully automatic multiple splicing methods

Feature splicing/marking point splicing/frame splicing, multiple splicing methods coexist and intelligently merge into a single-layer point cloud

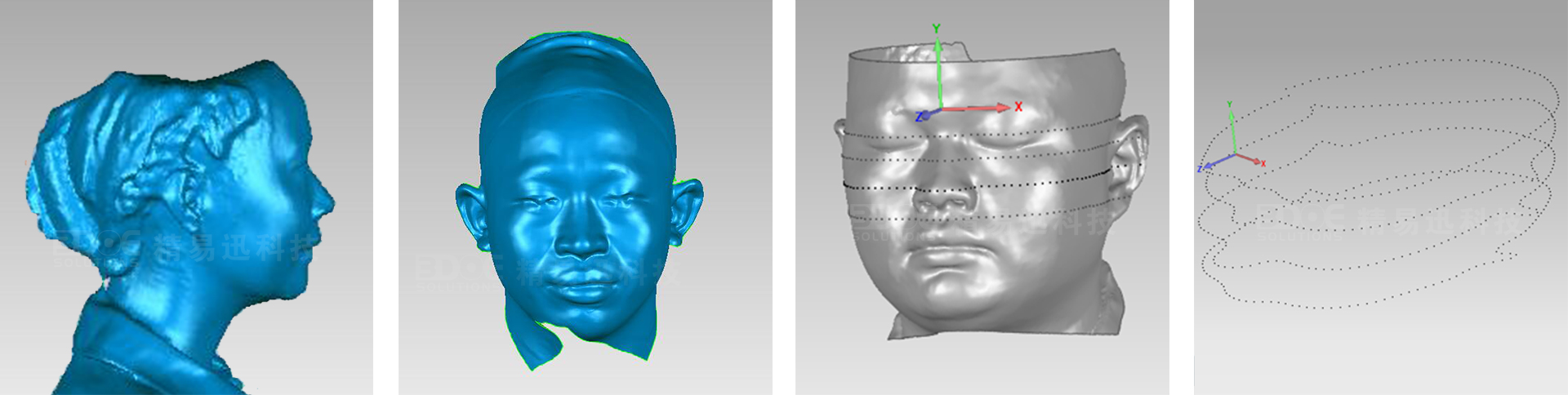

▣ Classic cases

▣ Technical Parameters

Product number	eSharp-X7
	eSharp-X7-W	eSharp-X7-B	eSharp-X7-C
light source	LED white light	LED blue light	LED multi-color light
Measuring accuracy（mm）	Up to 0.02
Measuring speed	>1.3 million measurements/sec
Single scan speed（s）	<0.1
scanning method	Handheld surface scanning / cradle scanning
Single scan area（mm）	200*150
Splicing method	Feature stitching/marking point stitching/frame stitching
Working distance（mm）	350
Data output format	ASC, STL, PLY, OBJ, etc.
transfer method	USB3.0
Support operating system	Windows /7/10 64-bit
Compatible software	3D Systems（Geomagic Solutions）、InnovMetric Software（PolyWorks） Dassault Systems（CATIV V5 and SolidWorks）、PTC（PRO/ENGINEER） Autodesk（inventor、Alias、3ds max、Maya、Softimage） Siemens（NG and Solid Edge）
