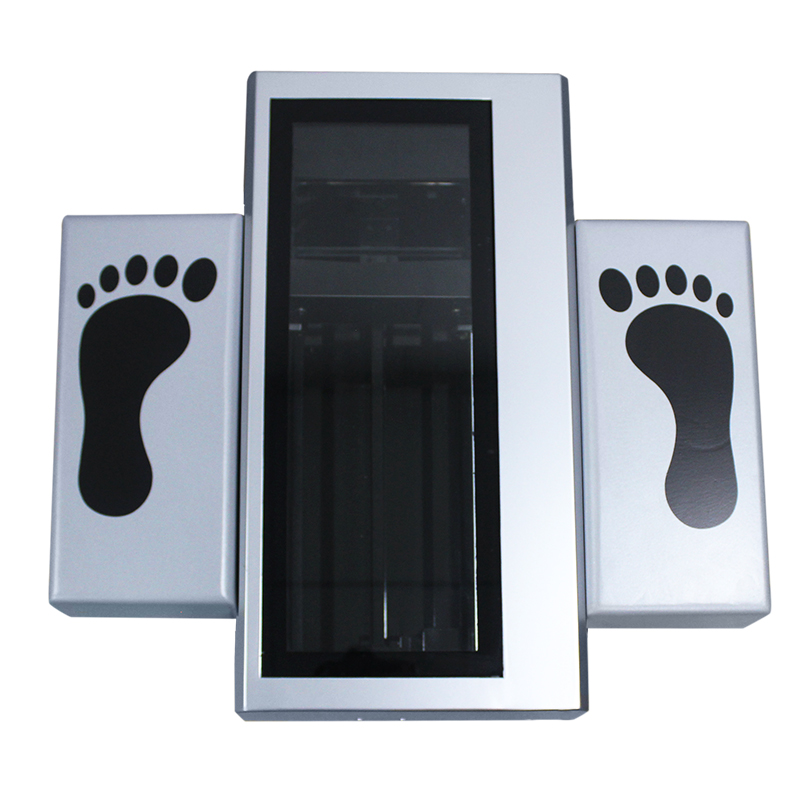

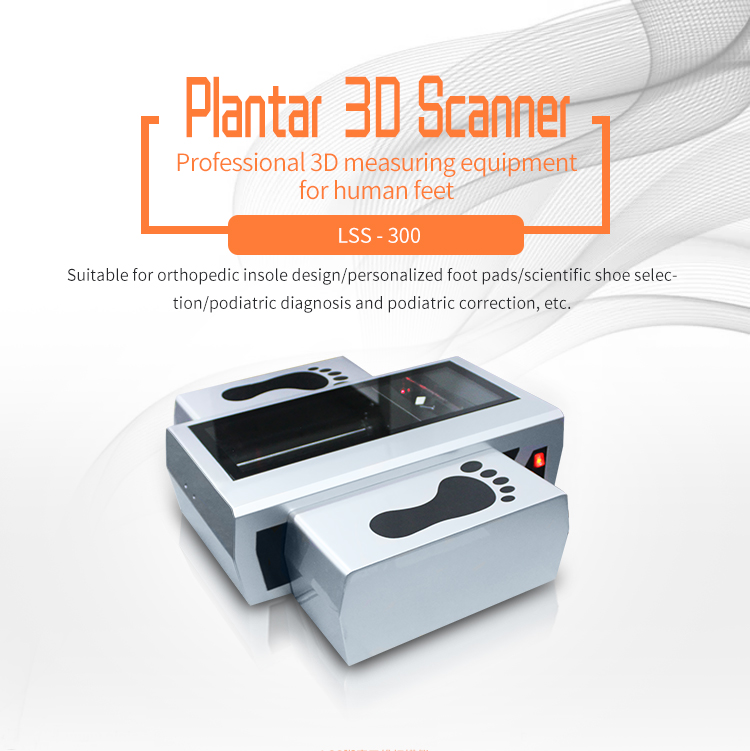

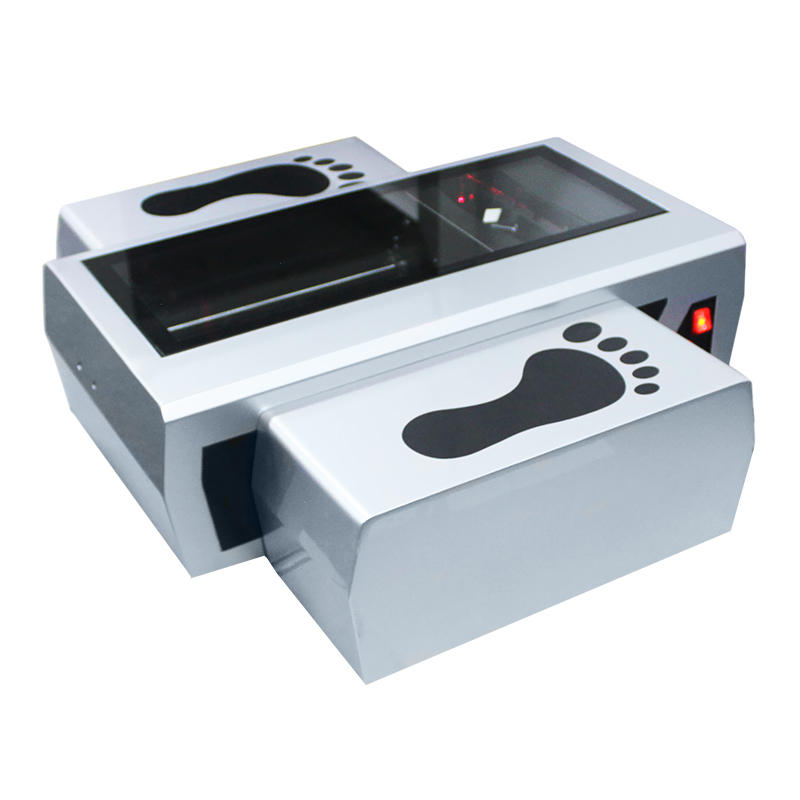

LSS-300 Plantar Scanner

Classification:

Product model:

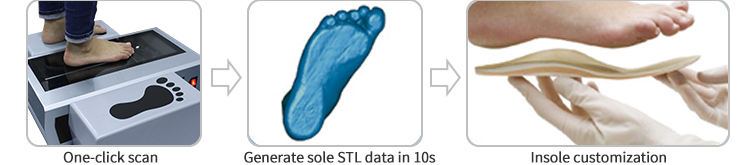

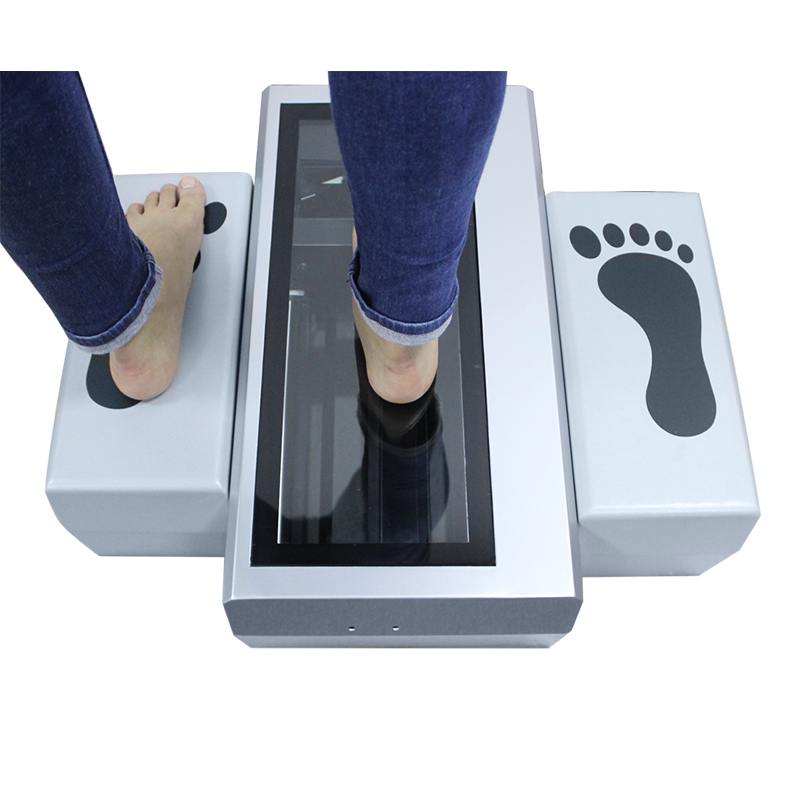

3DOE foot sole LSS series 3D scanner (plantar 3D scanner) is a professional measuring equipment for 3D scanning of human foot. It adopts non-contact laser scanning method to collect 3D data of human foot in 10 seconds, and generate 20 Several parameters support full-weight, semi-weight-bearing or non-weight-bearing plantar scanning, which can effectively carry out various tasks such as orthopedic insole design, personalized insoles, scientific shoe selection, podiatric diagnosis and podiatry correction; widely used Medical, sports, shoe store retail and other fields.

+86-0755-86131192

Product introductionClassic casestechnical parameterapplication areacontact us

The plantar 3D scanner (LSS300) uses 4 viewing angles for simultaneous scanning, with high accuracy, no dead ends, simple operation, practical and easy to learn, the data scanned by the plantar scanner is currently in the personalized custom insole customization industry, foot shape Correction industry, and other fields are widely used. In the personalized high-end customization and orthopedic insole industry, it has established cooperative relationships with many shoe companies, medical institutions, and universities.

Features:

1. Scanning objects: soles, soles, shoe boxes;

2. Non-contact safety laser (Class2M laser) scanning, no harm to the human body and human eyes;

3. One-button operation: the system is easy to operate, one-button scanning, without manual intervention;

4. High measuring accuracy, standard error<0.5mm;

5. Fast measurement speed: complete a complete scan of the sole of a foot within 10S;

6. Data output format: ASC, OBJ, STL, etc.

7. Support local computer storage of data after scanning

8. Operating system: windows style software interface, convenient for users to use.


▣ Classic cases

▣ Technical Parameters

model	LSS-300
scanning method	Non-contact line laser scanning, no harm to human body and eyes
Scan range(x, y, z)	300×170mm
Scan error	± 0.1 mm
Scan time	< 10s
Output format	ASC，STL，OB etc.
operating system	Windows XP/Windows 7
Power requirements	AC 220V
