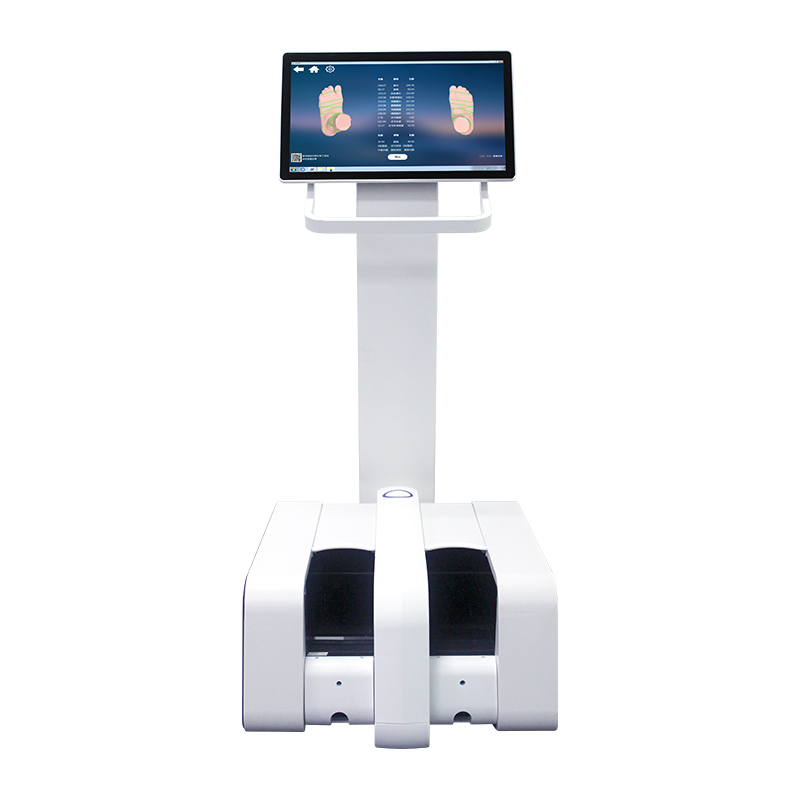

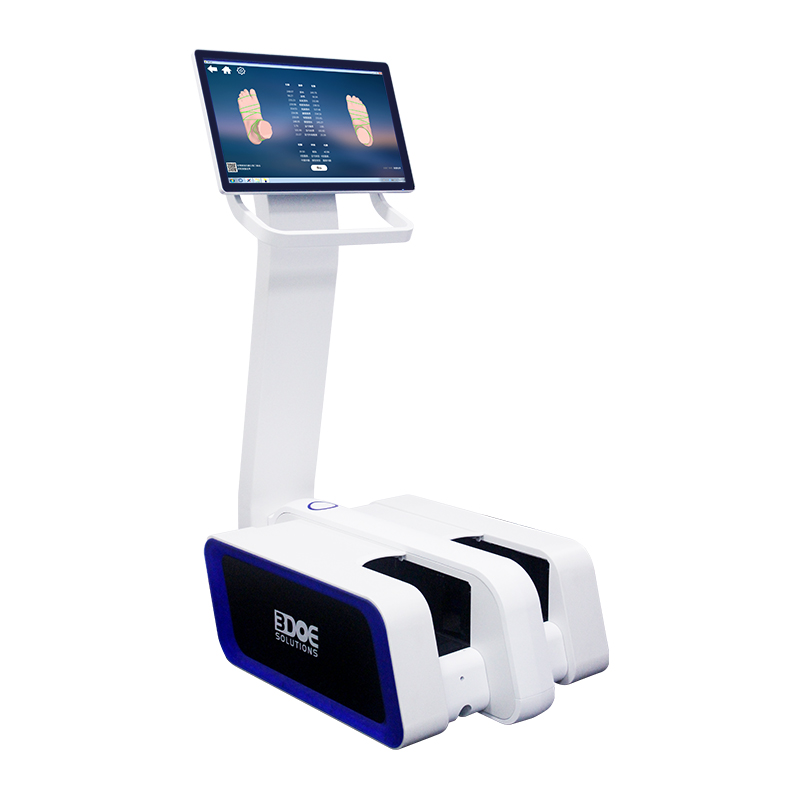

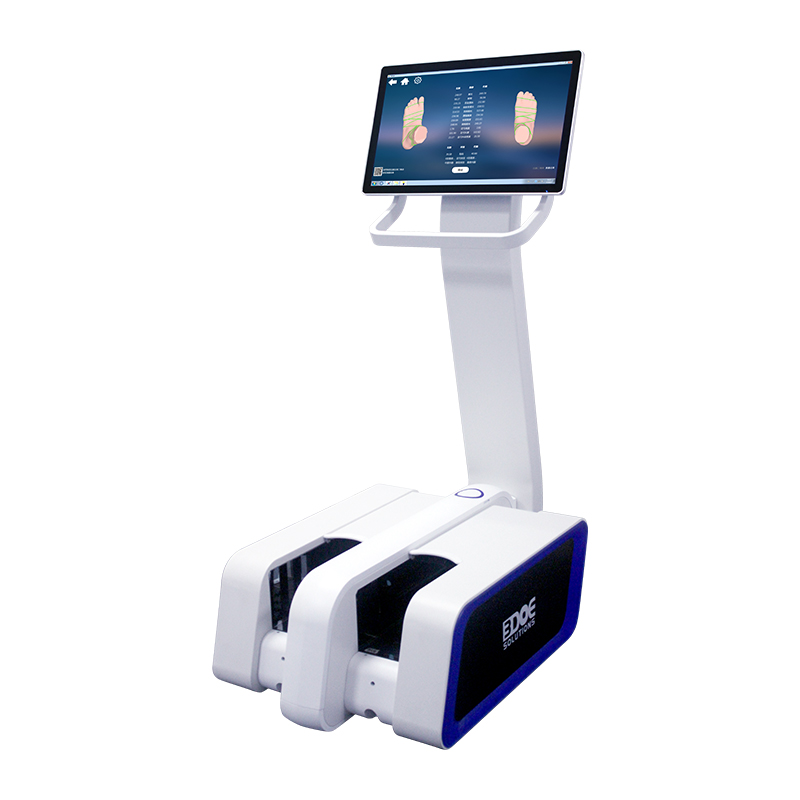

eFoot-350Pro Foot Scanner

Classification:3D Foot Scanner

Product model:eFoot-350Pro

The eFoot-350Pro foot profile measuring instrument is a new model launched by the company. It measures both feet at the same time to avoid changing feet during measurement. It can scan the human foot shape and last shape three-dimensionally, collect high-precision foot shape and last shape 3D data, and Generate more than 60 sets of personalized parameters, support upload and download, and are widely used in the shoe industry and medical rehabilitation fields.

+86-0755-86131192

Product introductionClassic casestechnical parameterapplication areacontact us

hardware:

★ Full optical path closed system, 8 viewing angles omni-directional scanning

★ Scanning objects: feet (bare feet or wearing socks), lasts, plaster models

★ Intelligent one-button touch operation, without manual intervention, files are automatically saved;

★ Non-contact laser scanning, no harm to human body and eyes;

★ Technological and fashionable appearance design, can switch the decorative lights of technological sense, high-end atmosphere, suitable for store display.

software:

★ Support WeChat public account access

★ Cloud management of scanning foot data

★ Larger measuring range, suitable for measuring from children's feet to ultra-long feet

★ Faster scanning speed (15-20S with two feet scanning)

★ High measurement accuracy (standard error<0.5mm)

★ Automatically extract more than 60 groups of measurement parameters of the foot and generate a measurement report (word file); data analysis can be performed on a single cross-section of the foot

★ Evaluate foot shape valgus and arch deformation

★ Directly generate foot-shaped STL triangle mesh data, and the scanned data can be imported into a 3D printer to directly print foot model samples;

★ Support SQL database

★ Cloud automatic selection of shoes and customized services

★ Meet the needs of women's high-heeled shoes customization: the foot can be scanned after the heel is increased, and the parameters after the foot deformation can be collected for the purchase and customization of high-heeled shoes;

Yizu 3d foot scanning system-experiential marketing carrier

◆ Experience: Intelligent extraction of more than 60 sets of parameters of the foot, digital foot shape

◆ Service: customer information cloud management, customer segmentation, one-to-one service

◆ Marketing: Support WeChat public account access and push marketing information instantly

◆ Sales: automatic shoe selection and customized service functions on the cloud platform, placing orders anytime, anywhere

Solution:

1. Establish [foot type or shoe last] database

2. Smart shoe selection

A. Shop purchase

B. Pocket O2O purchase

3. Personalized customization

4. Foot health care

▣ Classic cases

▣ Technical Parameters

model	eFoot-350Pro
scanning method	Both feet
Scanning light source	Laser Class2M, no harm to human body and eyes
Scanning range (x, y, z) (mm)	350×170×150
Scan error(mm)	± 0.5
Scan time(S)	< 20 (both feet)
application	eFoot V3.0
Output format	ASC, STL, OBJ, etc., support EasyLast, ShoeMaster, Rhino and other software
operating system	Win7/10 64bit
Power requirements	AC 220V, it is recommended that users bring their own ups power supply with 500W power
rated power	240w
