塑胶件三维扫描逆向抄数案例-精易迅

客户带来几个塑胶样件希望获取样件的三维数据点，用来做逆向设计。

逆向工程技术也称反求工程。逆向设计技术不同于传统的产品正向设计方法。它是根据产品或零件的现有原型，建立产品或零件的工程设计模型。在此基础上，对已有产品进行CAD重建，并根据需要重新进行设计和改进。逆向工程的主要任务是将原物理模型转化为工程设计概念或产品数字化模型。

三维扫描仪在逆向设计的数据采集流程中必不可少。

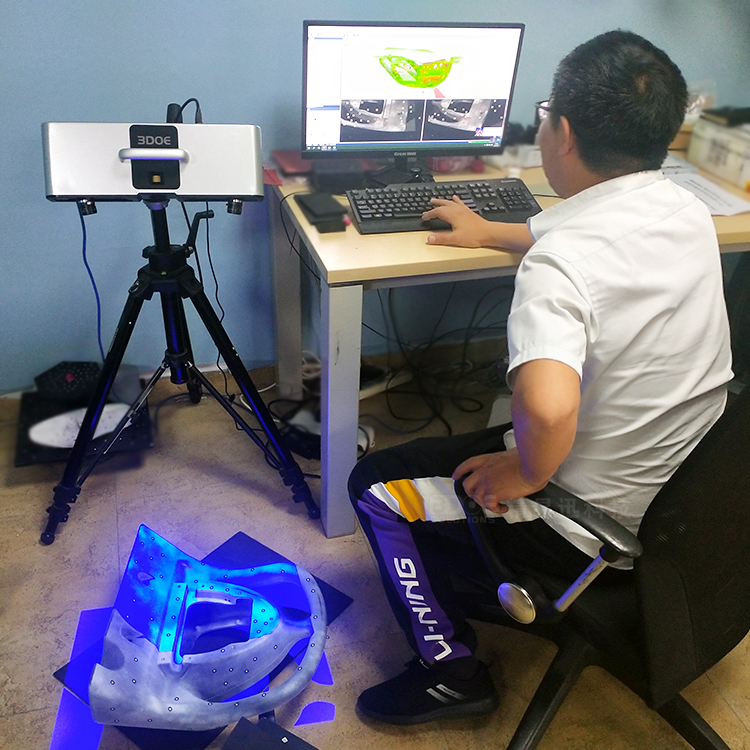

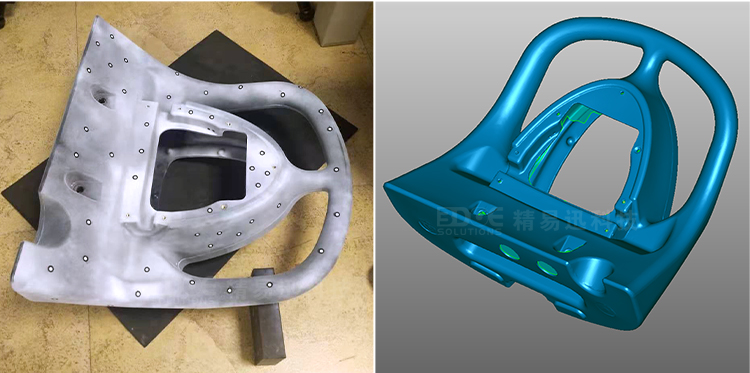

采用精易迅PTS-C系列蓝光拍照式三维扫描仪对客户的样件进行精准的3D扫描,为客户快速提供逆向工程所需的零件的高精度三维测量数据。以便客户后期通过软件构造曲面或实体使之成为所需的三维数据模型，以便进行二次设计或者是直接加工。真正实现 "一机在手，设计无忧"！
     精易迅拍照式三维扫描仪，可按需求自由调整测量范围，从小型零件扫描到车身整体测量均能完美胜任。它集高速扫描与高精度优势，是为满足工业设计行业应用需求而研发的产品。
